Triomphe + screens

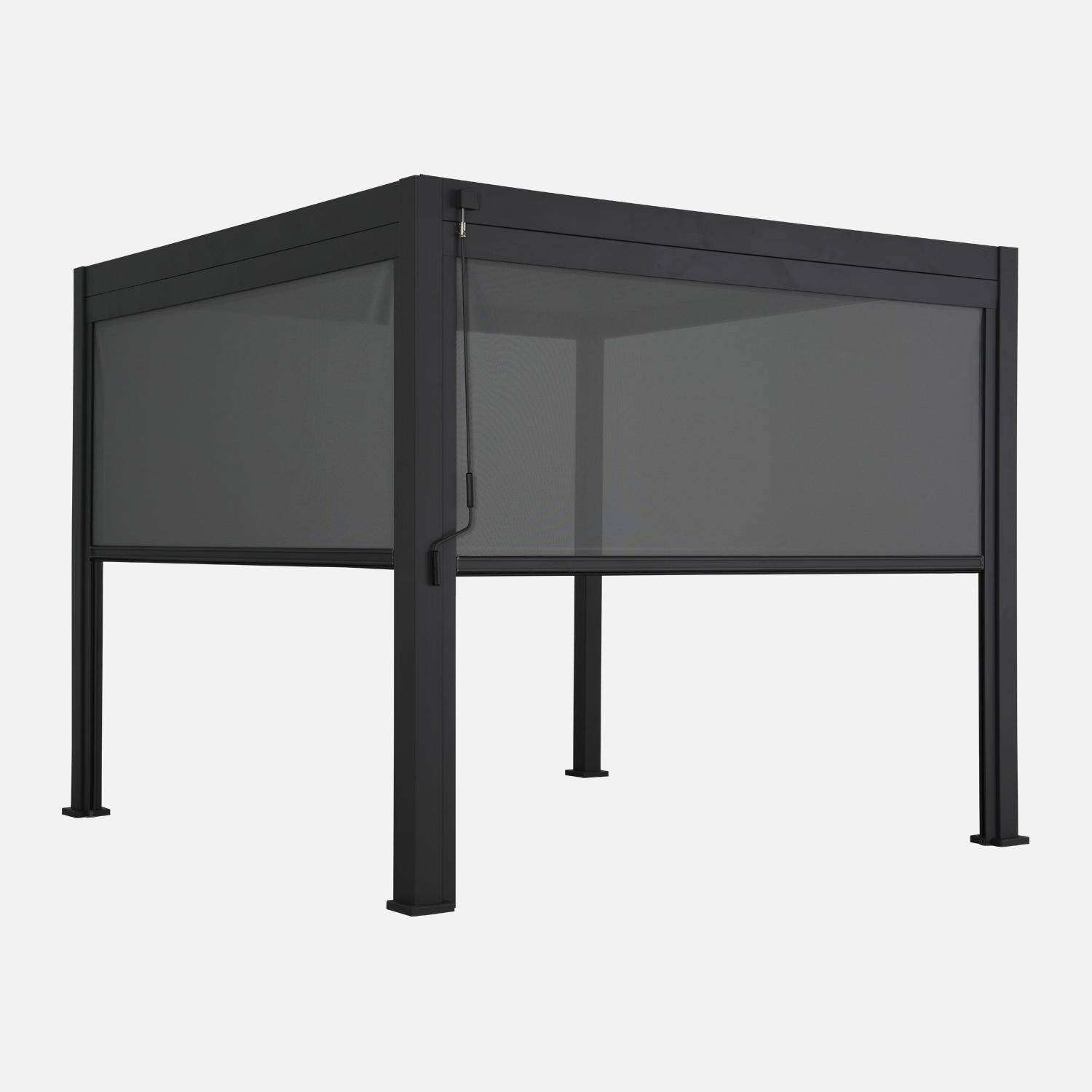

3x3m louvered aluminium pergola V2 + 2 privacy screens 3m

PGBC3X3R3N3AT

3x3m louvered aluminium pergola V2 + 2 privacy screens 3m, Triomphe + screens, Anthracite, 301x301x250 cm Photo2
3x3m louvered aluminium pergola V2 + 2 privacy screens 3m, Triomphe + screens, Anthracite, 301x301x250 cm Photo4 3x3m louvered aluminium pergola V2 + 2 privacy screens 3m, Triomphe + screens, Anthracite, 301x301x250 cm Photo5 3x3m louvered aluminium pergola V2 + 2 privacy screens 3m, Triomphe + screens, Anthracite, 301x301x250 cm Photo6 3x3m louvered aluminium pergola V2 + 2 privacy screens 3m, Triomphe + screens, Anthracite, 301x301x250 cm Photo7 3x3m louvered aluminium pergola V2 + 2 privacy screens 3m, Triomphe + screens, Anthracite, 301x301x250 cm Photo8 3x3m louvered aluminium pergola V2 + 2 privacy screens 3m, Triomphe + screens, Anthracite, 301x301x250 cm Photo9

    Promotion excluded

    £2,449.00

    Including £3.60 ecotax.

    Back soon

    Notify me when this product is next available.

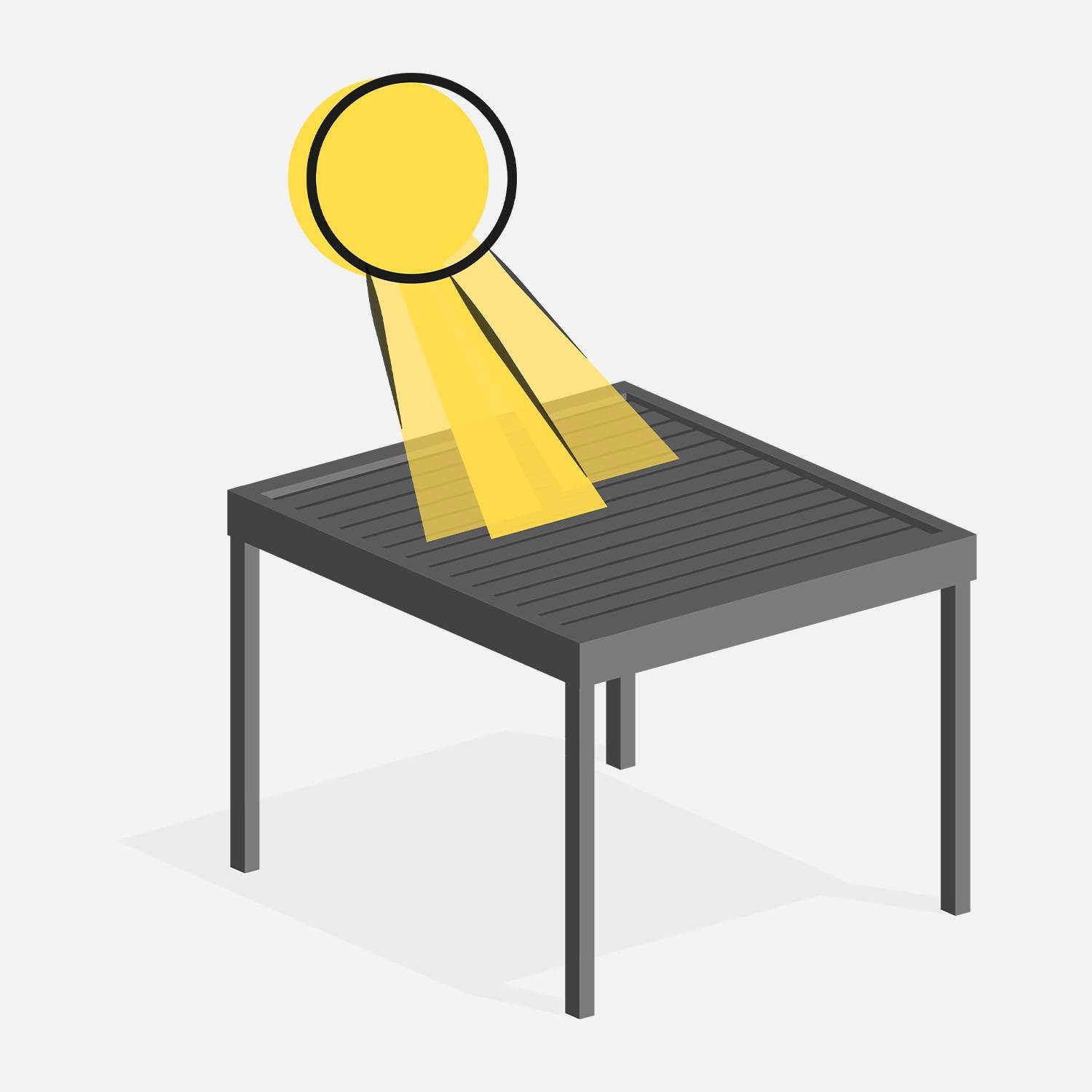

    Protection from the sun and rain

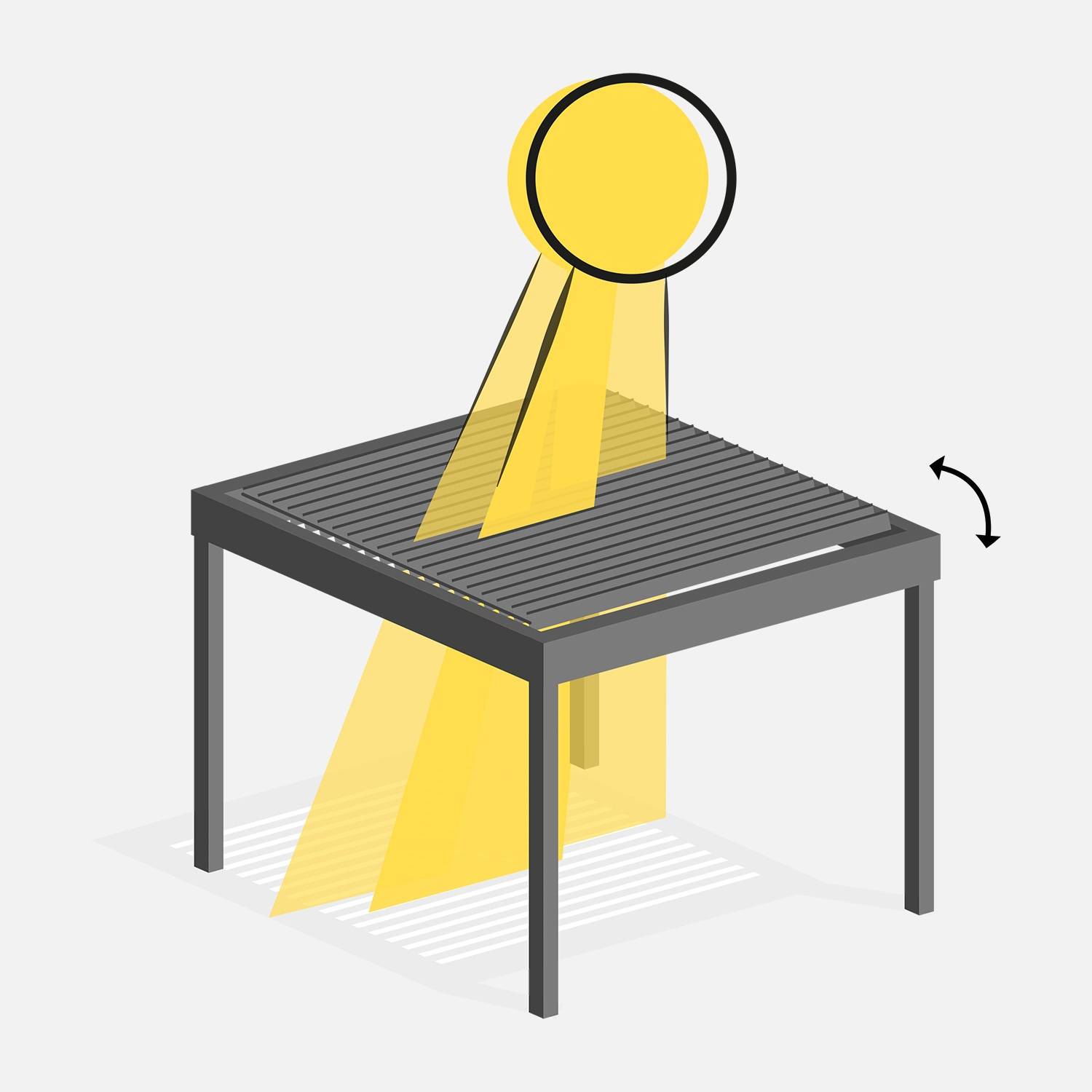

    Adjustable slats

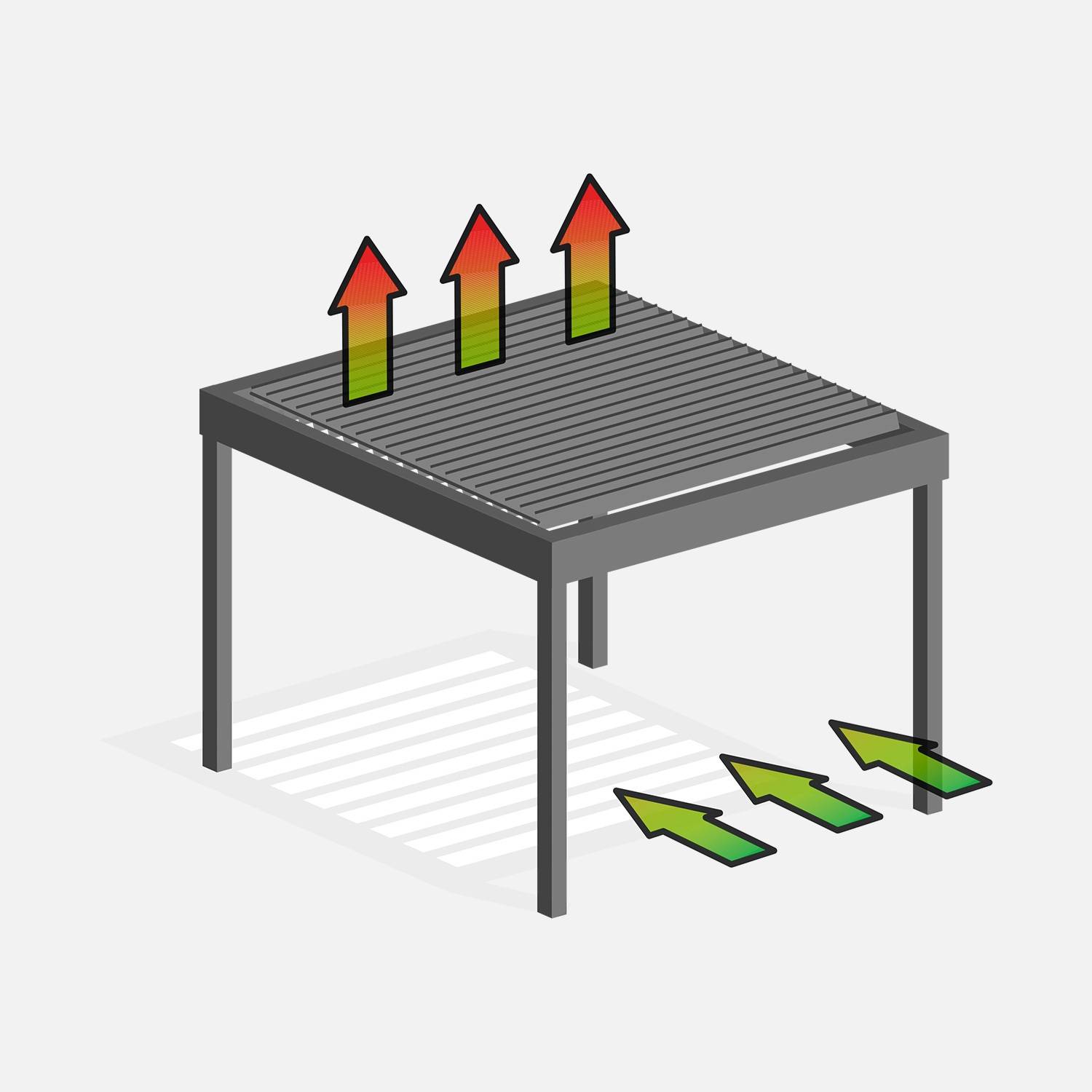

    Natural ventilation

    Warranty: 2 years + 3 years free on the pergola! ( privacy screens not included in warranty extension)

    Free delivery on all products

    Product under limited warranty for 2 years

    Customer service here to help you

    Triomphe + screens

    3x3m louvered aluminium pergola V2 + 2 privacy screens 3m

    £2,449.00
    3x3m louvered aluminium pergola V2 + 2 privacy screens 3m, Triomphe + screens, Anthracite, 301x301x250 cm Photo1
    £2,449.00

    A 4-season pergola with an aluminium structure

    The Triomphe 3x3m V2 louvered pergola accompanies you to enjoy convivial moments in your garden. Forget putting your pergola away in autumn, this louvered model is suitable for all seasons. The pergola is permanently fixed to the ground. Its adjustable slats let you enjoy the shade and coolness in summer and stay dry the rest of the year. Place it above a garden table, near your pool area or to shelter your spa.
    Designed with a quality aluminium structure (frame + legs) with galvanised steel slats, this pergola is a long-term investment. Aluminium is an ideal material for outdoor use, as it doesn't rust and is resistant to bad weather and UV rays. this pergola is therefore robust and requires very little maintenance, so it will last for many years in your garden.
    The  privacy screens tilting slats are operated by a crank. Totally enclosed, it protects you from the sun's rays and the rain. On the rainiest days, water is drained away through the poles by an innovative integrated drainage system. When partially open, you'll enjoy plenty of ventilation while keeping the sun's rays at bay. In short, you choose your exposure to the sun.

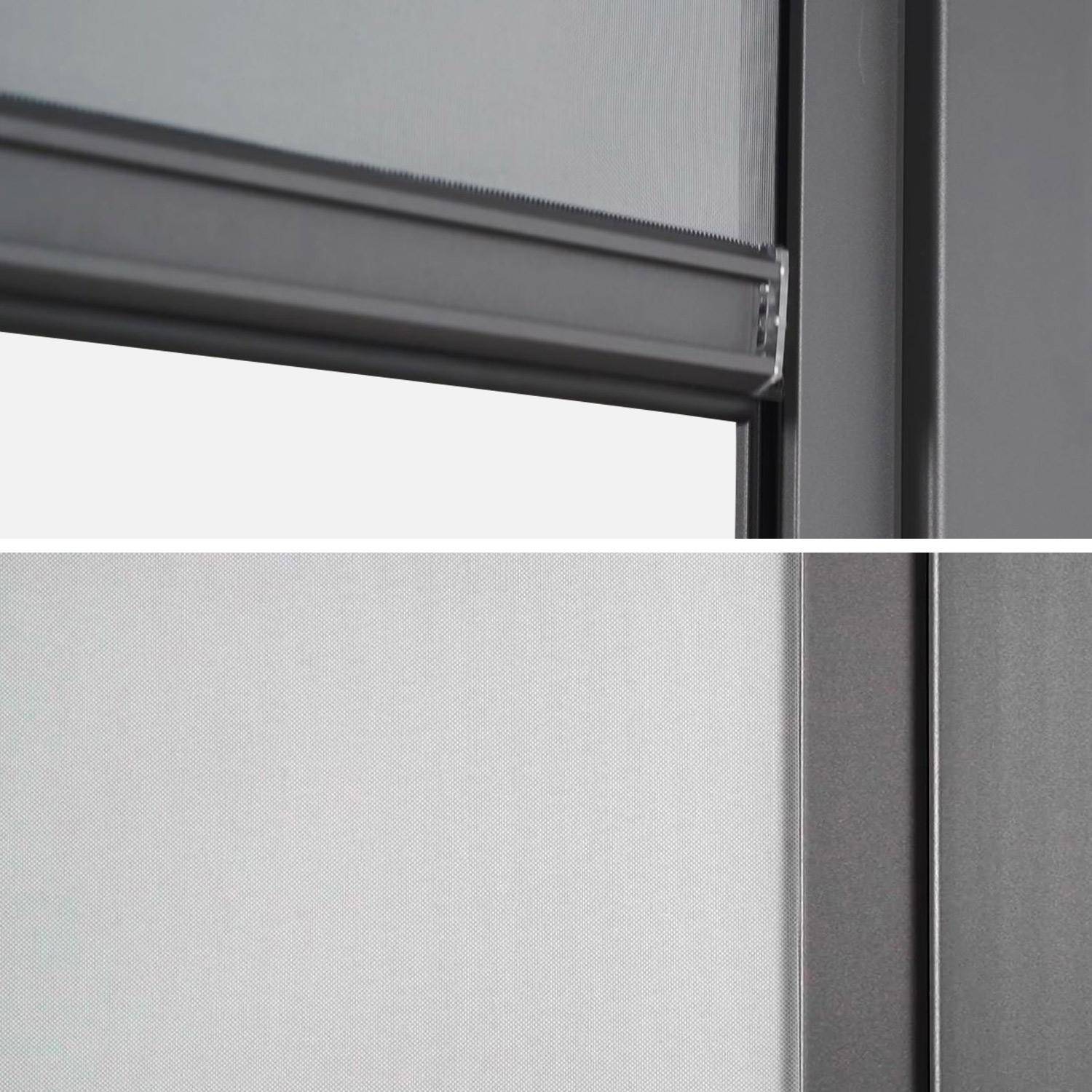

    2 heavy-duty privacy screen for greater comfort

    Get the most out of your bioclimatic pergola with these 2 vertical aluminium privacy screens. They're the essential accessory for protecting you from the sun and bad weather. Cleverly designed, they keep out prying eyes but are not completely opaque. This privacy screenis perfect for providing optimum comfort on your terrace and for enjoying good times with family and friends. The height of the privacy screen can also be adjusted to suit your needs. Its levels and height are not predefined.
    Easy to use, all you have to do is manually lower the privacy screen to shelter from the wind or rain. Solid, it is designed with quality materials. Its aluminium side panels and Textilene fabric offer effective resistance to UV rays and bad weather. For added safety, the privacy screen must be retracted in the event of absence or strong winds (over 50km/h).

    Compare our louvered pergolas

    Click here to discover our louvered pergolas comparator

    Package dimensions

    Package 1: L 289.5 x l 22.5 x h 17 cm - 37.3 kg
    Package 2: L 289.5 x l 22.5 x h 17 cm - 37.3 kg
    Package 3: L 278 x l 26 x h 23.5 cm - 42.94 kg
    Package 4: L 303.5 x l 29 x h 17 cm - 32.72 kg
    Package 5: L 298.5 x l 32 x h 19 cm - 54.6 kg
    Package 6: L 298.5 x l 32 x h 19 cm - 50 kg

    Instruction manual
    Type Louvered pergola
    Motorised No
    Shape Square
    Colour Anthracite
    RAL 19-0201
    Warranty period 2 years + 3 years free! (Excluding accessories)
    Size 3 x 3 m
    Area 9 m²
    Length 3 m
    Width 3 m
    Height to ridge 2,57 m
    Entrance height 2,36 m²
    Height of closed blades 2,50 m
    Interior floor area 8,89
    Floor area 9 m²
    Post dimensions L 11 x P 11 x H 250 cm
    Aluminium thickness 1,4 / 1,5 mm
    Blade dimensions L 294 x P 17 x H 3 cm
    Blade orientation 0 à 90 degrés
    Number of blades 19
    Material Aluminium
    Frame material Aluminium
    Blade material Galvanised steel
    Roof material Aluminium
    Post material Aluminium
    Base material Aluminium
    Screw material Inox
    Treatment Powder coating
    To be fixed to the floor Oui (Kit d'ancrage non inclus)
    Crank handle Yes
    Wind resistance 74 km/h
    Load resistance 66,4 kg/m²
    Maximum permissible roof load 597,6 kg
    UV resistant Yes
    Anti-rust / Corrosion Yes
    Water drainage system By drainage inside the posts
    Waterproofing Roof and slats
    Accessories Included 2 stores 3m Triomphe
    Fabric material Textilene
    Density 470 g/m²
    Assembly time 3h30 / 4 personnes
    Number of packages 6
    Use Outdoor
    Blades Galvanised steel
    Screws and bolts Stainless steel
    Water drainage system By drainage inside the posts
    Roof and slats Waterproof
    Weight (pergola) 158kg
    Overall external dimensions (pergola) W301 x D301 x H250cm
    RAL (blind) 7015
    Dimensions (blind) W289 x H236cm
    Number of blinds included 2
    Package dimensions

    Package 1: L 289.5 x l 22.5 x h 17 cm - 37.3 kg
    Package 2: L 289.5 x l 22.5 x h 17 cm - 37.3 kg
    Package 3: L 278 x l 26 x h 23.5 cm - 42.94 kg
    Package 4: L 303.5 x l 29 x h 17 cm - 32.72 kg
    Package 5: L 298.5 x l 32 x h 19 cm - 54.6 kg
    Package 6: L 298.5 x l 32 x h 19 cm - 50 kg

    Instruction manual

    Standards

    Your pergola is guaranteed for 2 years + 3 years free from the date of delivery. Awnings are not included in the warranty extension and are guaranteed for 2 years. You can find the conditions of this guarantee in our legal notice.
