Triomphe 3x3m V2
PGBC3X3V2WH
£1,299.00
Including £3.60 ecotax.
Ready to ship
Free delivery
Delivered between Wednesday, June 25 and Friday, July 4
Protection against sun and rain
Adjustable slats
Natural ventilation
2 years warranty + 3 years for free!
Free delivery on all products
Product under limited warranty for 2 years
Customer service here to help you

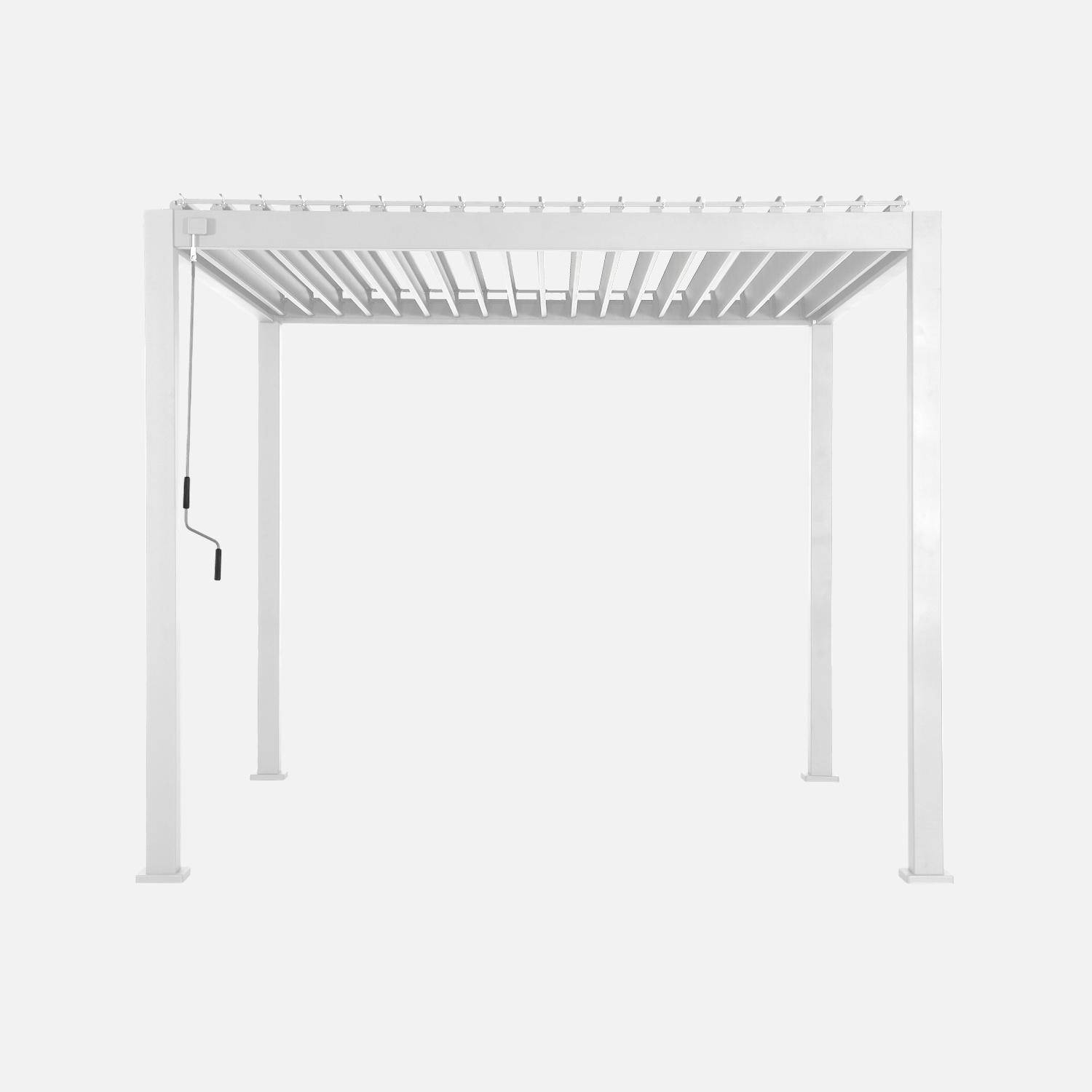

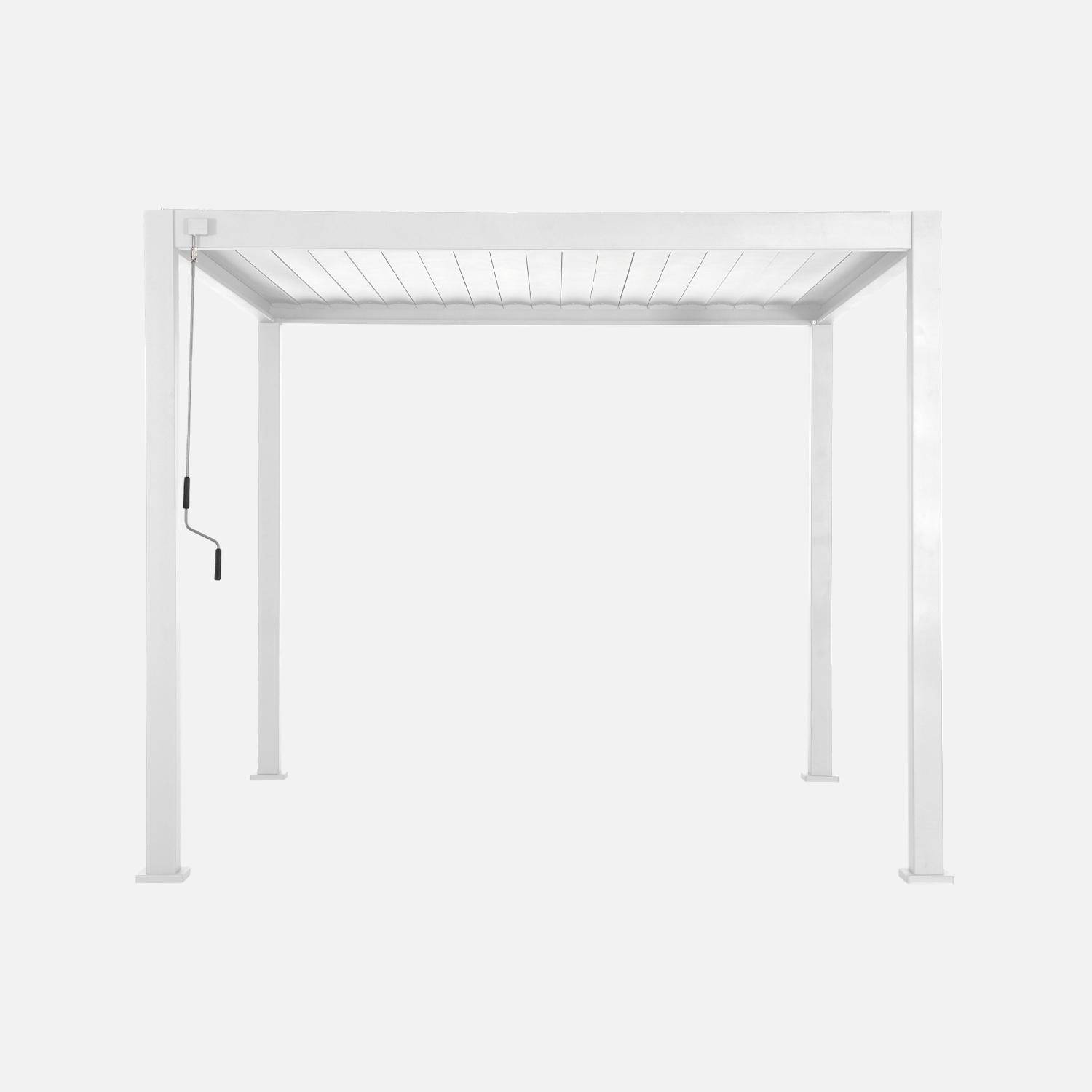

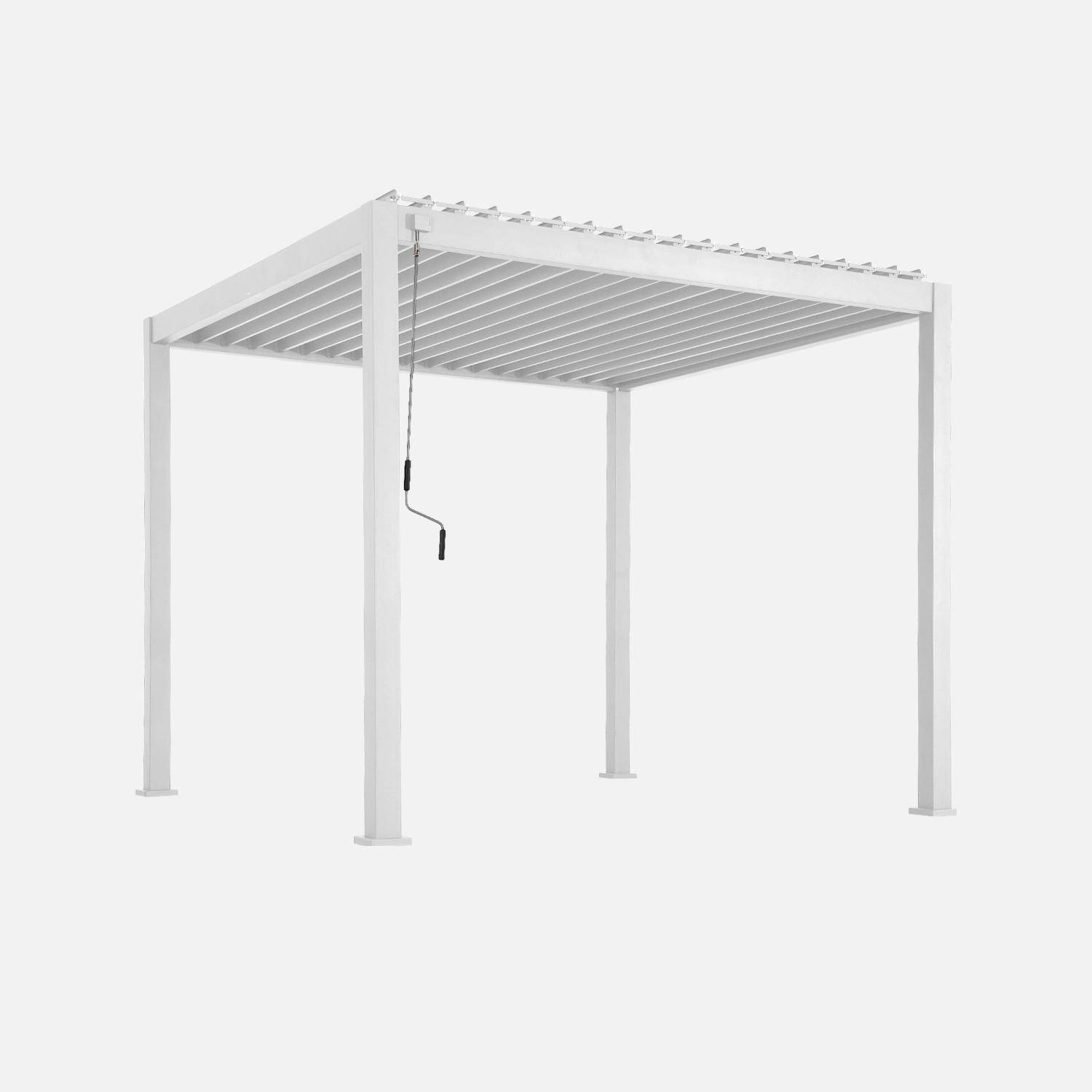

Triomphe 3x3m V2
3x3m louvered aluminium pergola with adjustable roof slats

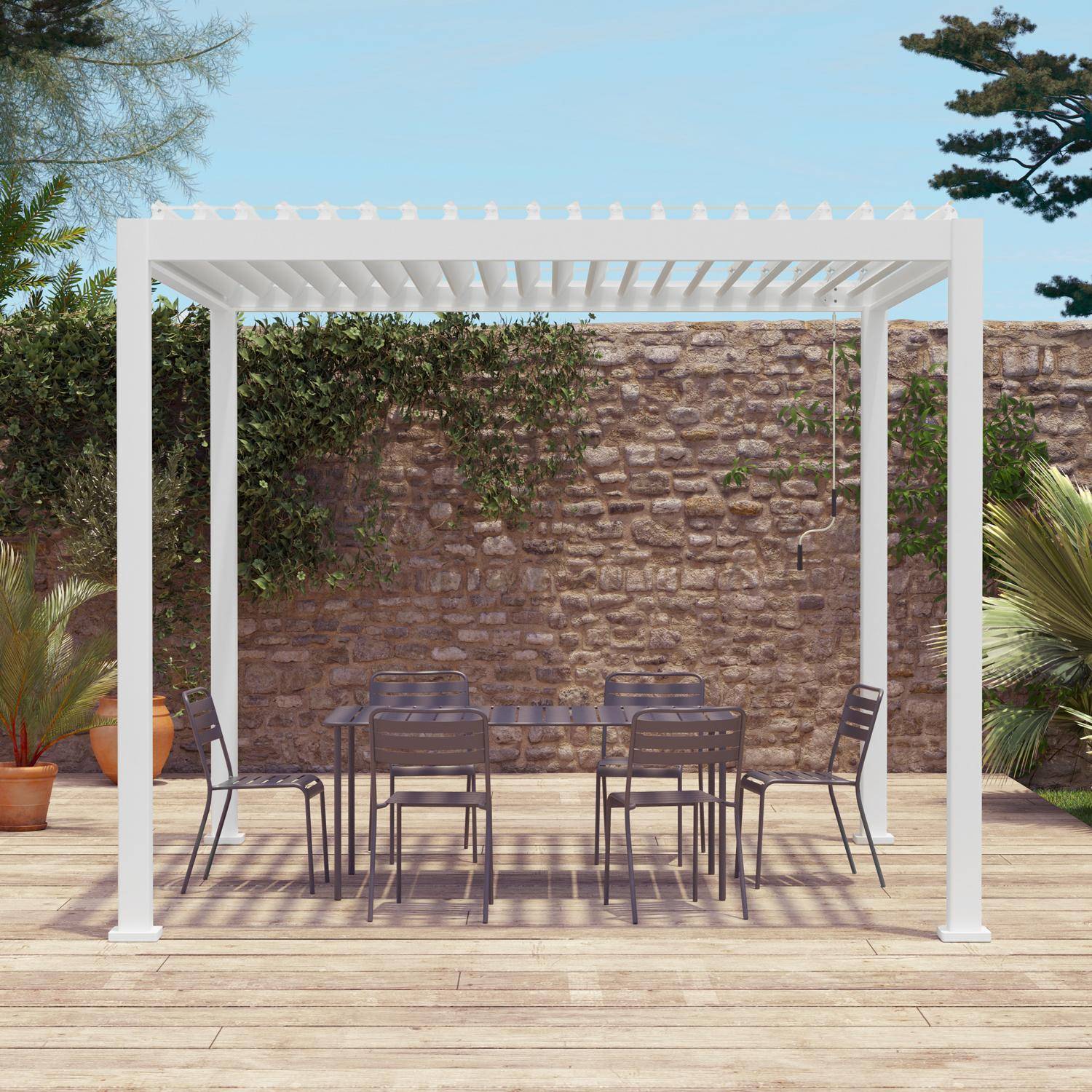

The bioclimatic pergola Triomphe 3x3m V2 accompanies you to enjoy convivial moments in your garden. Forget about storing your pergola in autumn, this bioclimatic model is suitable for all seasons. The pergola is permanently fixed to the ground. Its adjustable slats allow you to enjoy its shade and coolness in the summer and stay dry the rest of the year. Place it above a garden table, near your pool area, or to shelter your spa.
Designed with a quality aluminum structure (frame + legs) with galvanized steel slats, this pergola is a long-term investment. Aluminum is an ideal material for outdoor use, as it does not rust and is resistant to weather conditions and UV rays. This pergola is therefore robust and requires very little maintenance, and it can remain in your garden for many years.

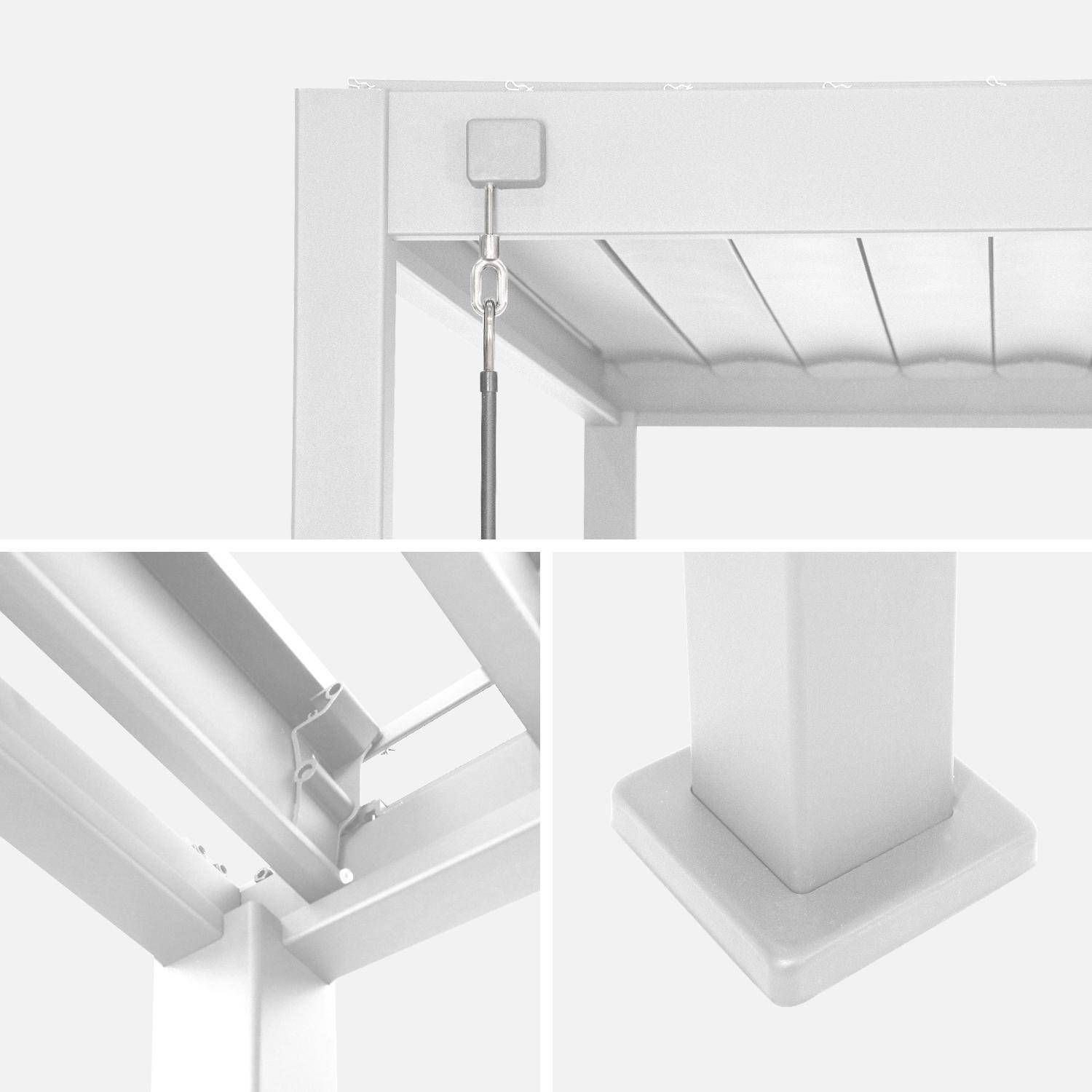

Thanks to a crank, the adjustable slats of the awning are operated. Completely closed, it protects you from the sun's rays and rain. During the rainiest days, the water is evacuated through the posts by an innovative integrated drainage system. With partial opening, you will benefit from significant ventilation while containing the sun's light rays. In short, you choose your exposure to the sun. Additional information: Your pergola is guaranteed for 2 years + 3 years offered from the date of delivery. This new version of the TRIOMPHE pergola is taller than the first one and has wider legs. It is compatible with accessories from the same range (3m blind PGBCRUS3AT and 100cm shutter PGBC100PERSAT). This pergola is to be mounted on level ground. It is advised to keep the blades open in case of snowfall.
No authorization required:
Bioclimatic pergola of less than 5 m²: You can install your pergola without any administrative formalities.
Pre-work declaration:
Bioclimatic pergola between 5 m² and 20 m²: A simple pre-work declaration is sufficient. You must submit it to the town hall of your municipality.
Building permit:
Bioclimatic pergola of more than 20 m²: You must necessarily apply for a building permit at the town hall of your municipality.
More info and specific cases: service-public.fr
Click here to discover our bioclimatic pergola comparator
Package 1: L 278 x l 26 x h 23.5 cm - 42.94 kg
Package 2: L 303.5 x l 29 x h 17 cm - 32.72 kg
Package 3: L 302.5 x l 32 x h 19 cm - 54.6 kg
Package 4: L 302.5 x l 32 x h 19 cm - 50 kg
Protection against rain thanks to waterproof seals
Sun protection: enjoy its freshness in summer
Natural ventilation

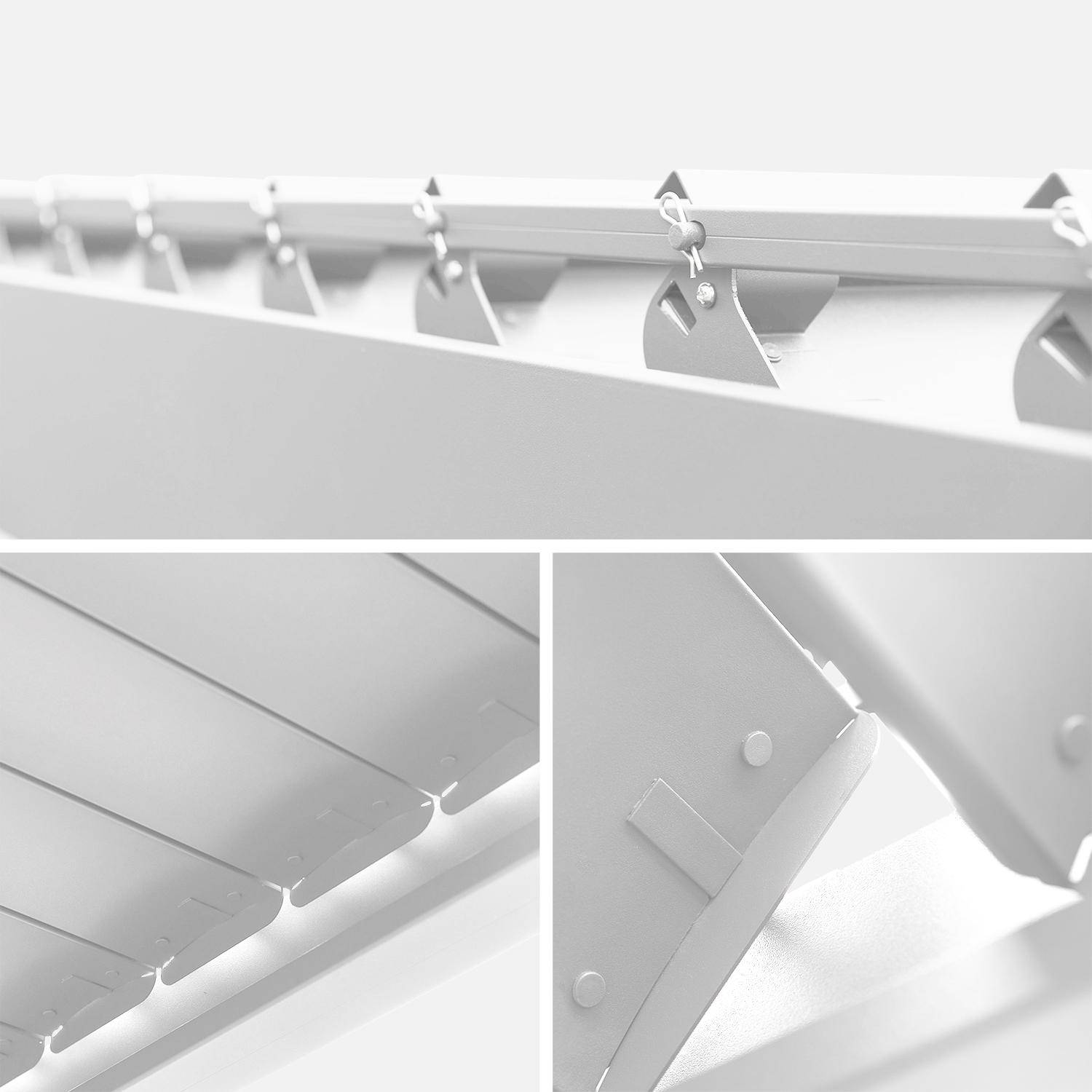

Tiltable slats to adjust the light flow
| Type | Louvered pergola |
| Motorised | No |
| Shape | Square |
| Colour | White |
| Pantone code | 000C |
| Warranty period | 2 years + 3 years free |
| Size | 3 x 3 m |
| Area | 9 m² |
| Length | 3 m |
| Width | 3 m |
| Height to ridge | 2,57 m |
| Entrance height | 2,36 m² |
| Height of closed blades | 2,50 m |
| Interior floor area | 8,89 |
| Floor area | 9 m² |
| Post dimensions | L 11 x P 11 x H 250 cm |
| Aluminium thickness | 1,4 / 1,5 mm |
| Blade dimensions | L 294 x P 17 x H 3 cm |
| Blade orientation | 0 à 90 degrés |
| Number of blades | 19 |
| Weight | 158,3 kg |
| Material | Aluminium |
| Frame material | Aluminium |
| Blade material | Galvanised steel |
| Roof material | Aluminium |
| Post material | Aluminium |
| Base material | Aluminium |
| Screw material | Inox |
| Treatment | Powder coating |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Wind resistance | 74 km/h |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 597,6 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |
| Accessories Included | No |
| Assembly time | 2h / 4 people |
| Number of packages | 4 |
| Use | Outdoor |

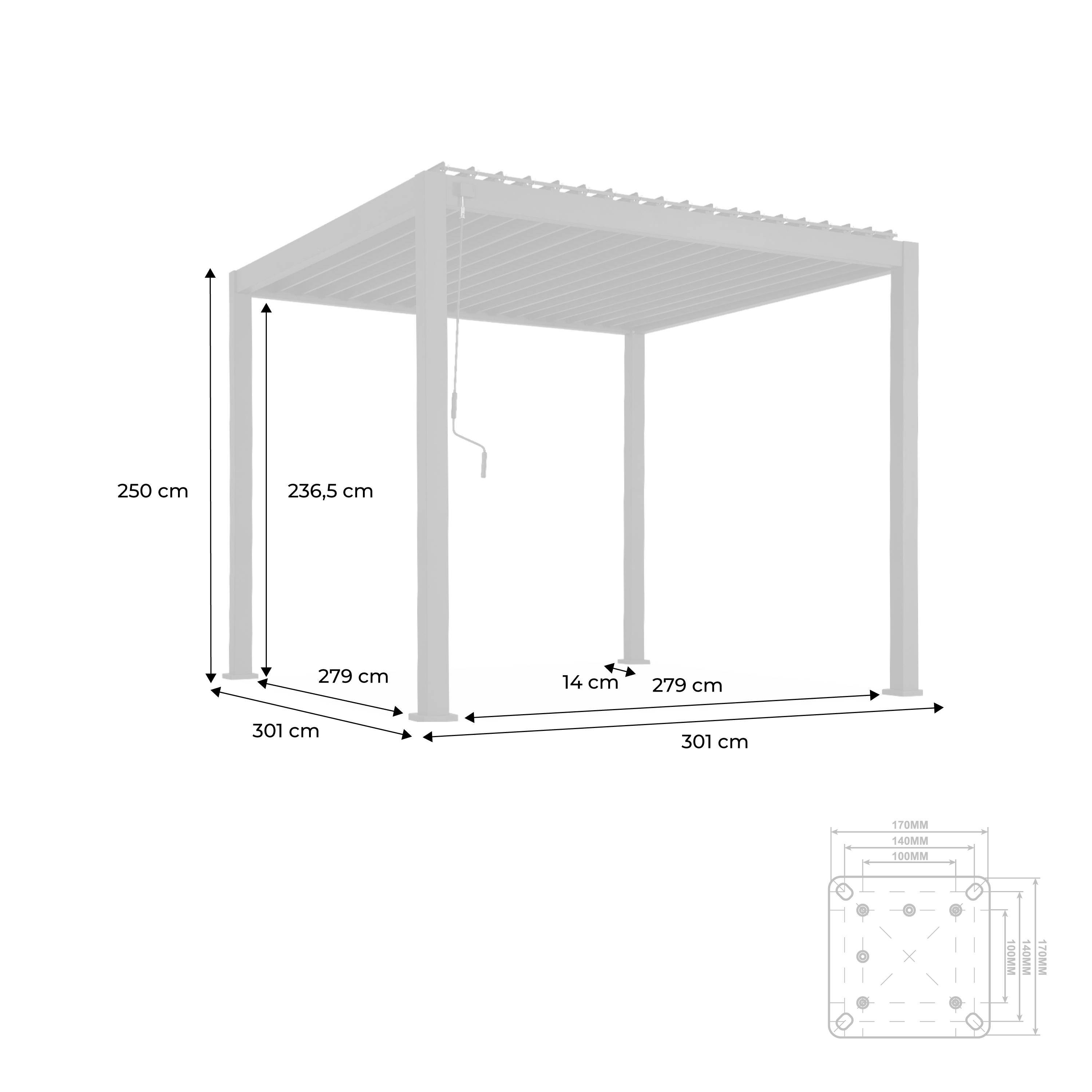

| Overall external dimensions | L 301 x D 301 x H 257 cm |
Package 1: L 278 x l 26 x h 23.5 cm - 42.94 kg
Package 2: L 303.5 x l 29 x h 17 cm - 32.72 kg
Package 3: L 302.5 x l 32 x h 19 cm - 54.6 kg
Package 4: L 302.5 x l 32 x h 19 cm - 50 kg
Warranty
Your product is guaranteed for 2 years + 3 years offered, from the date of delivery. You can find the conditions of this warranty in our legal notices.
